Quality Tools
Overview

In order to meet increasing quality requirements with regard to products and manufacturing processes, the zero-error strategy and process optimization are increasingly eliminating sources of human error and transferring control to automated entities.

In addition, there are numerous instruments available for individual sampling (verification) of the end product. This means that Komax offers comprehensive quality solutions for every need.

Quality Tools

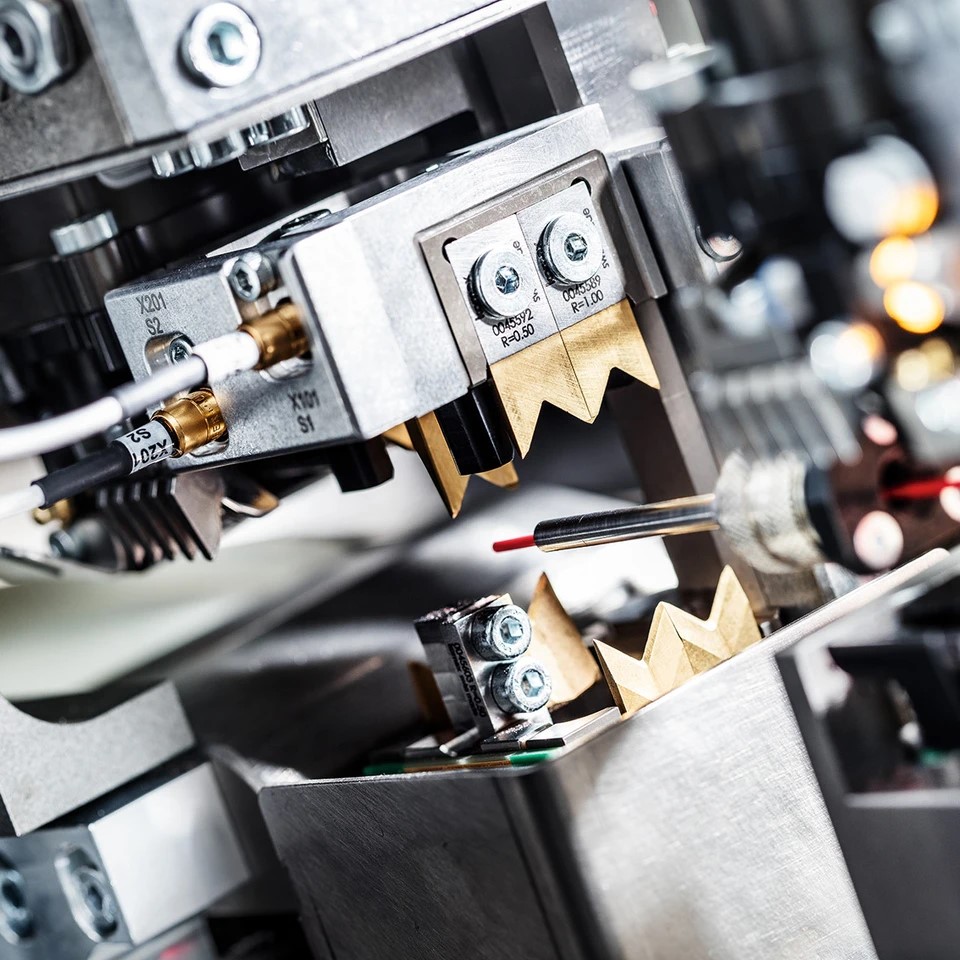

ACD

The ACD incision monitoring system automatically detects the smallest contact between the blade and conductor strands for flawless crimp results and the highest requirements.

Quality Tools

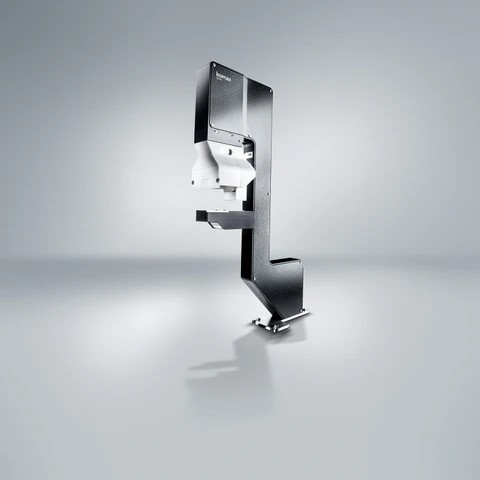

Q1250 Scalable

As a basic version, the scalable Q1250 module offers testing of the stripping as well as the crimp and seal. All quality features are comprehensively tested in the full package.

Quality Tools

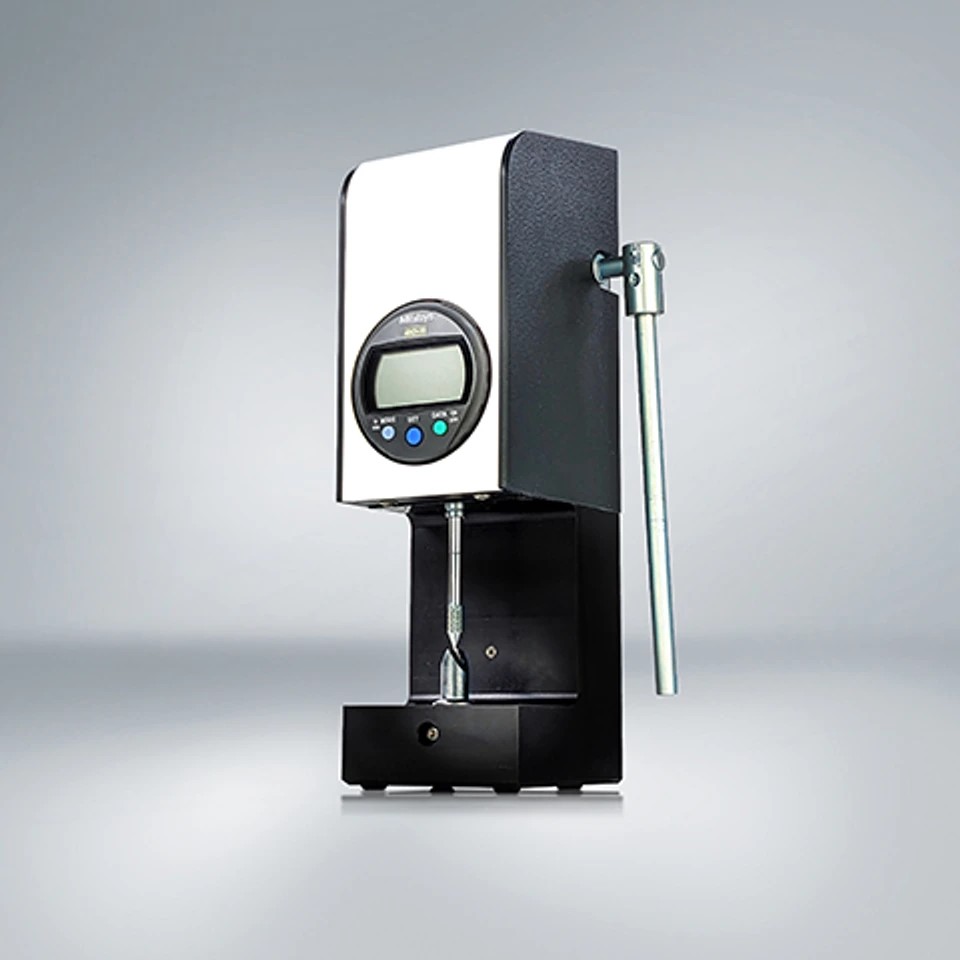

MicroHeight 10

The MicroHeight 10 crimp height measurement device verifies the quality of crimps either as a stand-alone device or integrated into certain Komax machines for quality verification.

Quality Tools

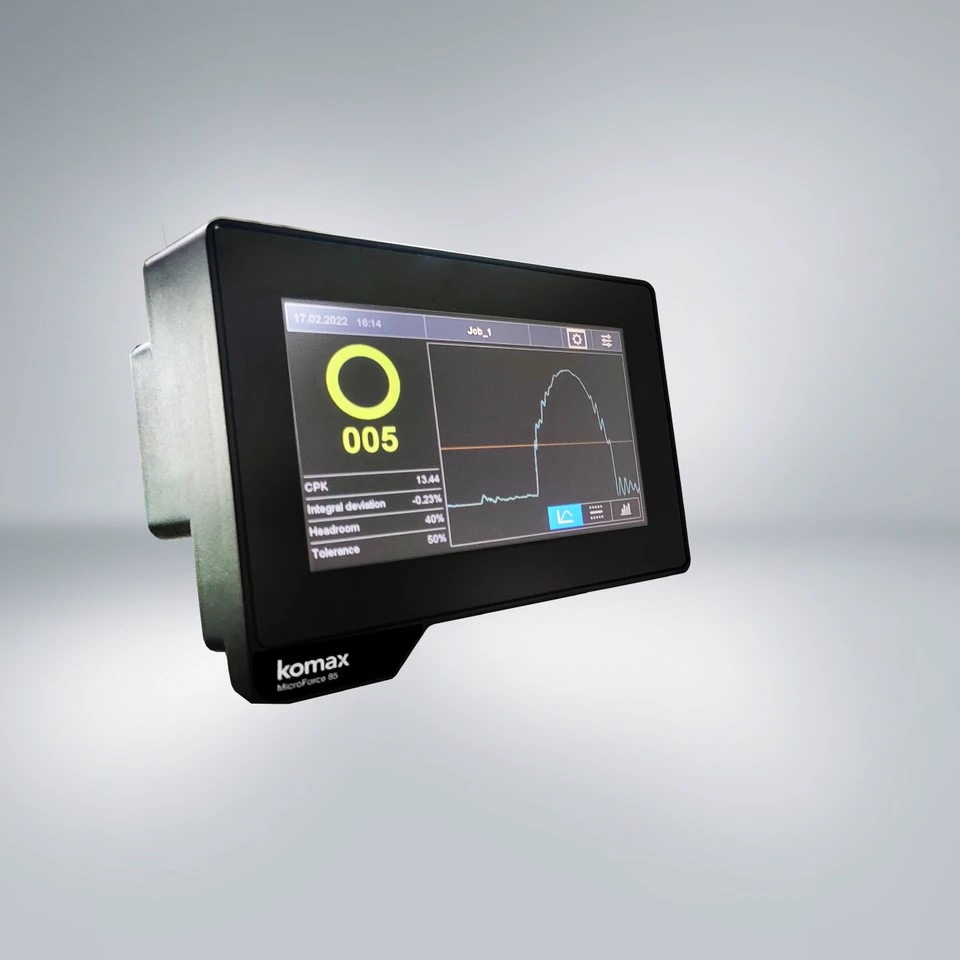

MicroForce 85

The MicroForce 85 crimp monitoring device minimizes faulty crimps, contributes to process optimization using data analysis and ensures traceability in production.

Quality Tools

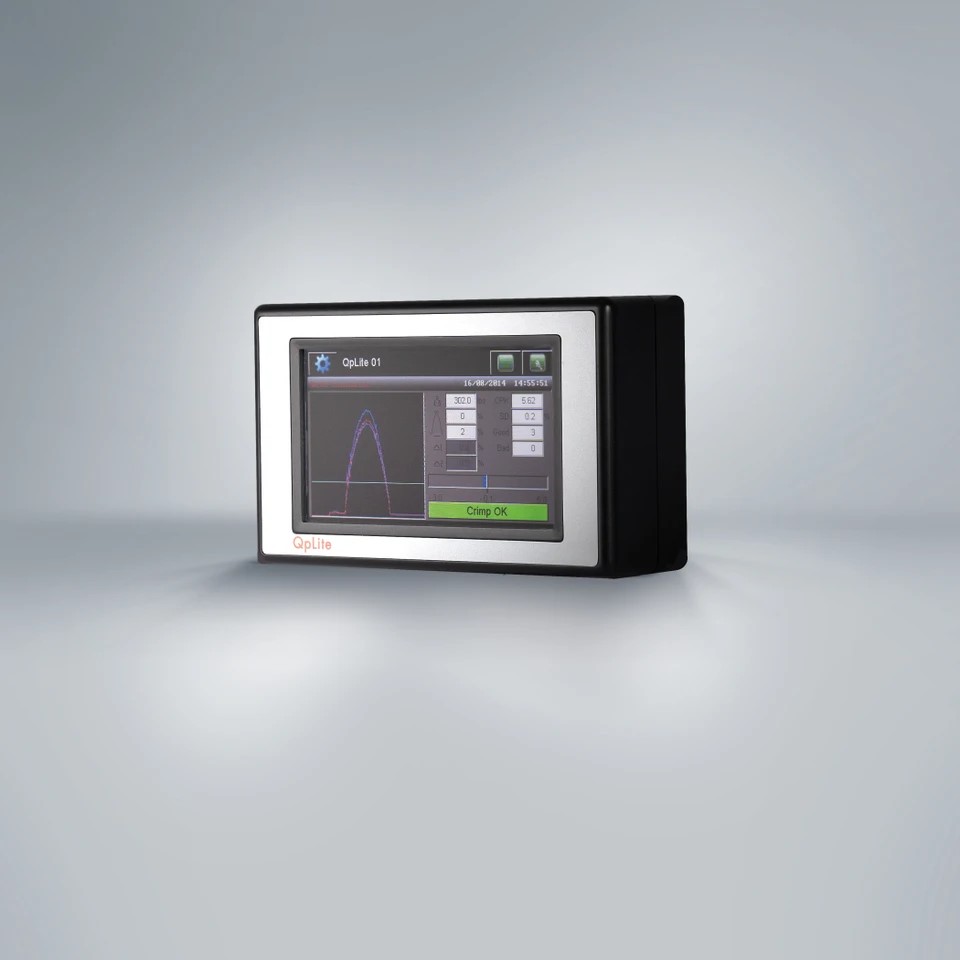

QP Lite

The QpLite is a simple and mobile crimp force monitoring device that captures quality based on crimp force curves on tabletop crimpers.

Quality Tools

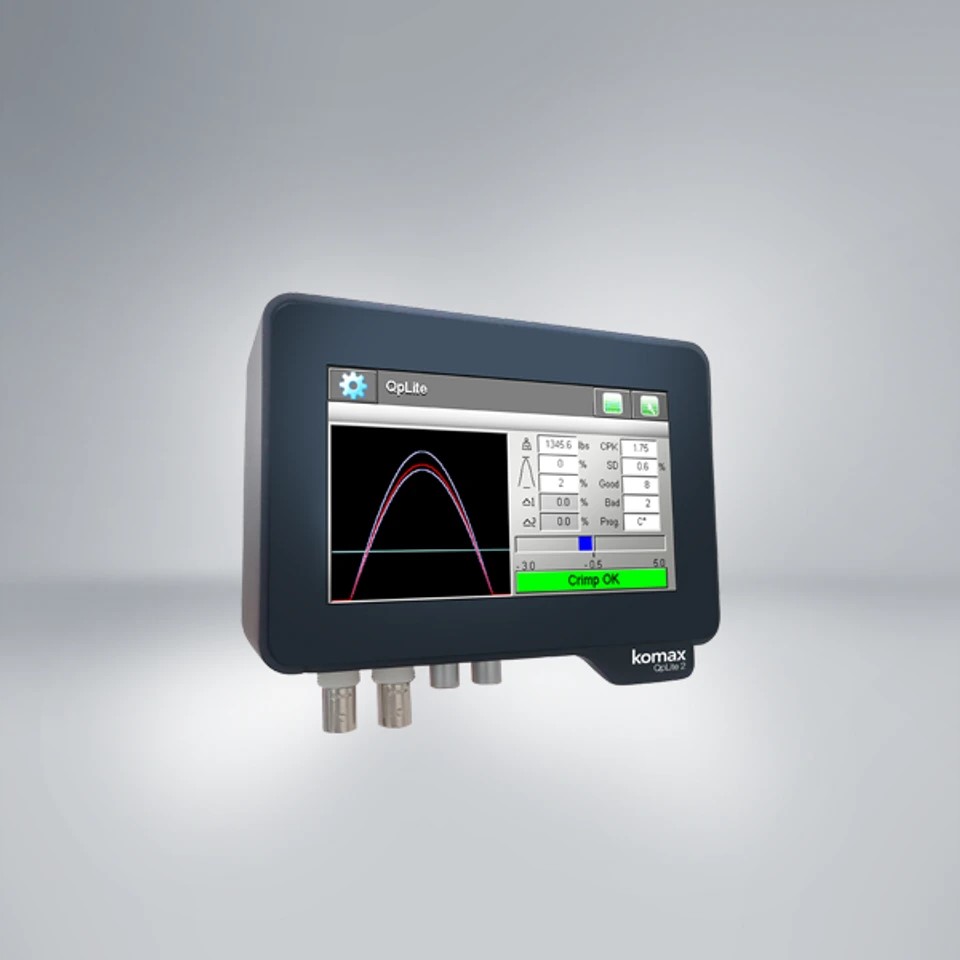

QP Lite 2

The QpLite2 is a scalable crimp force monitoring device (CFM) ensuring the quality of each crimp. It can be integrated with either single or double-channel benchtop crimp presses.

Quality Tools

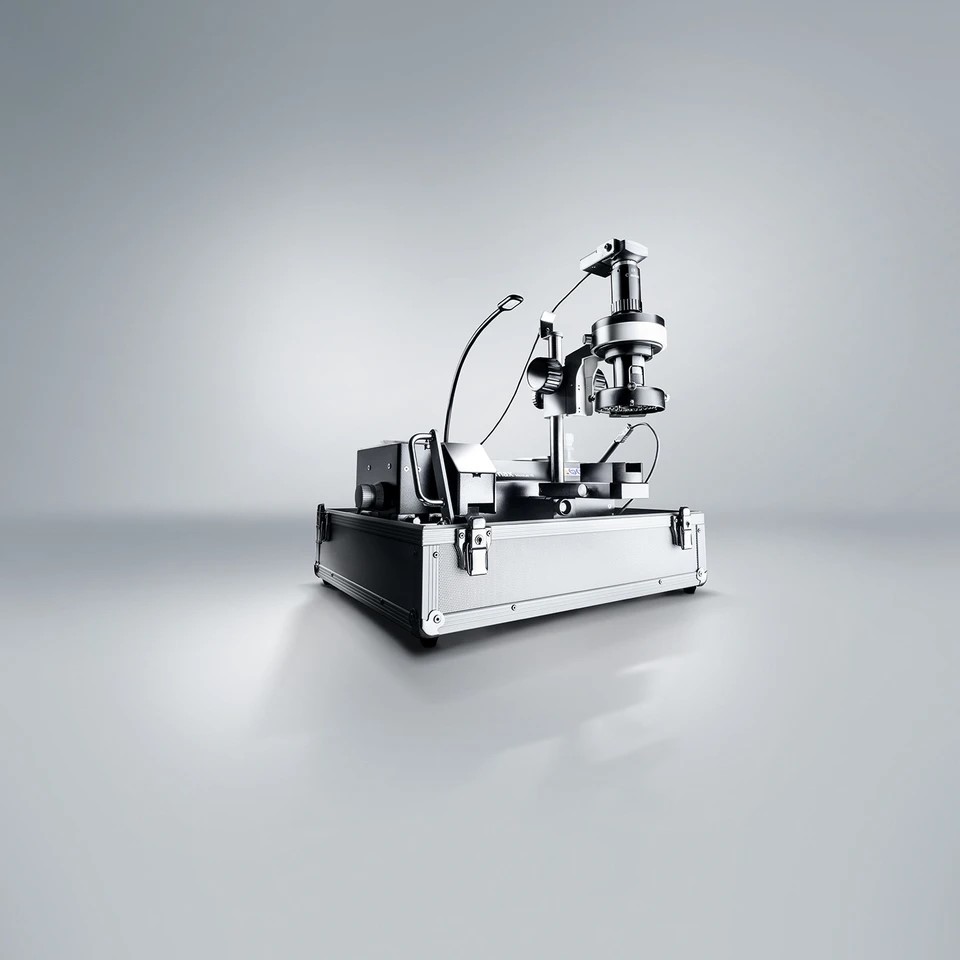

MicroLab 10

The MicroLab 10 is a compact micrograph laboratory in a case system that measures and evaluates small quantities of B crimps in the 0.5 - 2.5mm processing range.

Quality Tools

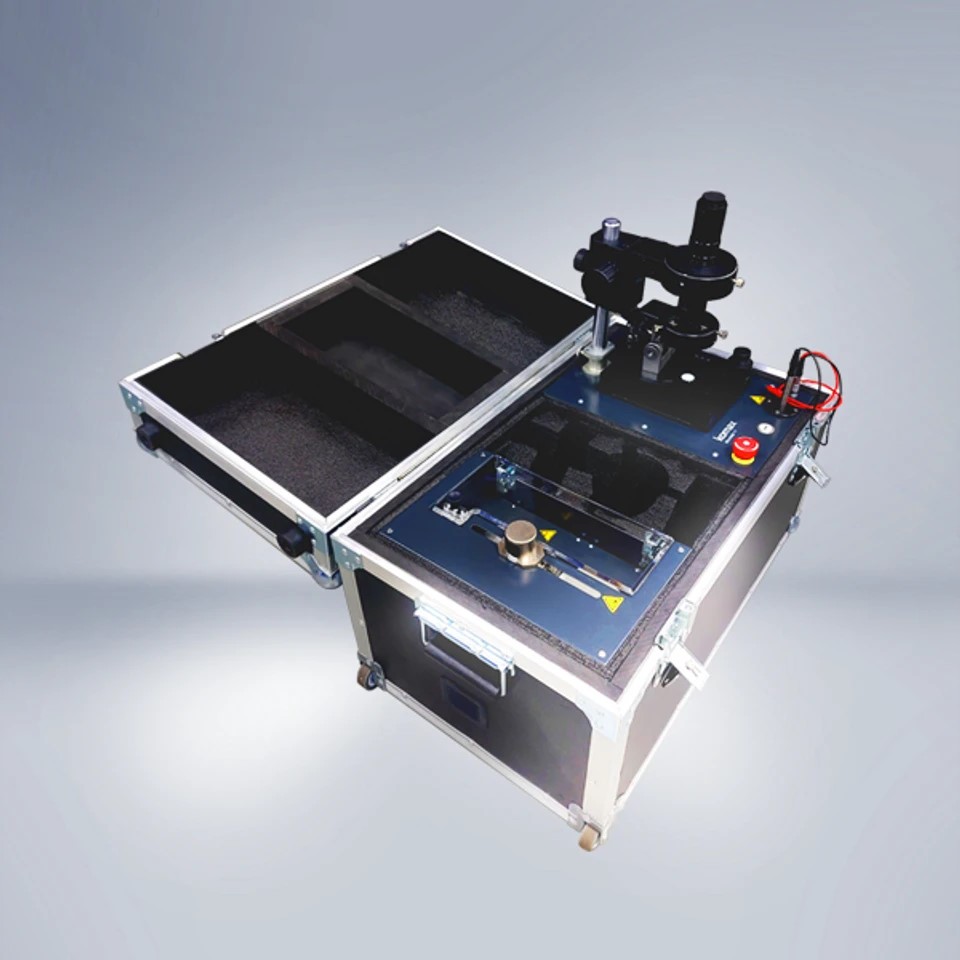

MicroLab 11

The MicroLab 11 is a portable all-in-one micrograph laboratory solution with integrated automatic cutting and semi-automatic grinding functions.

Quality Tools

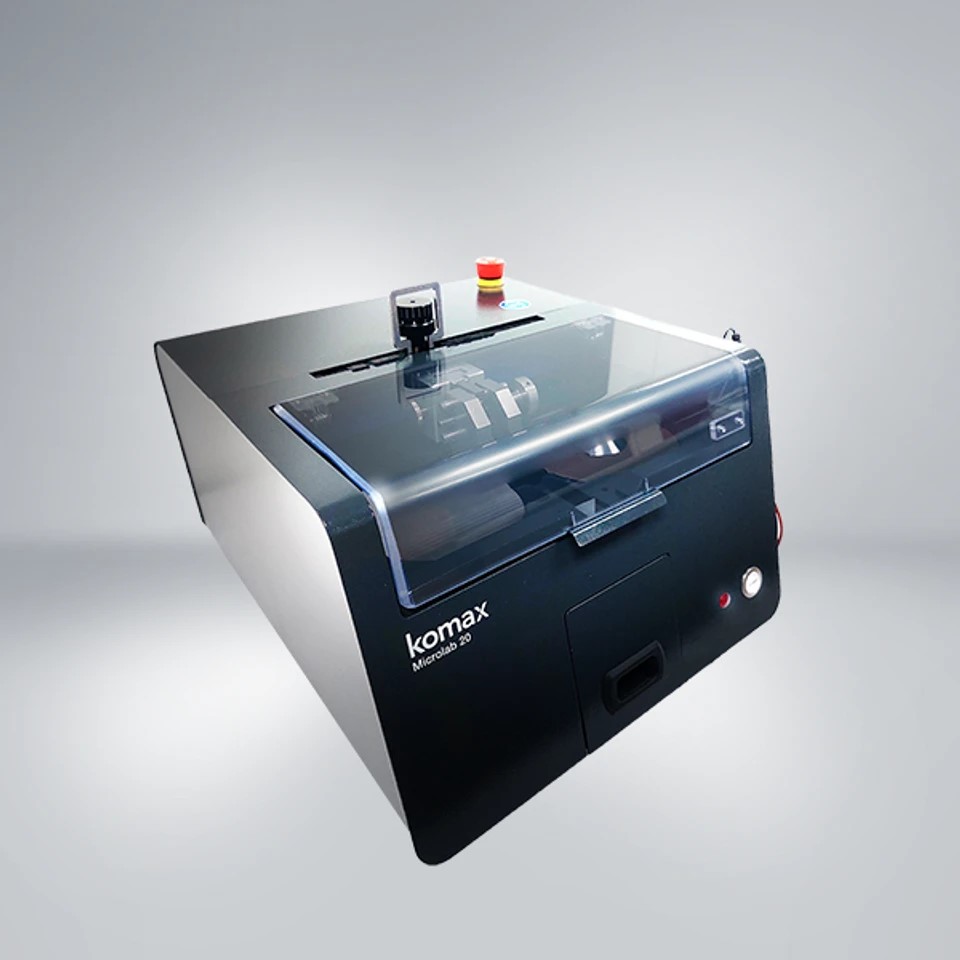

MicroLab 20

The MicroLab 20 is a fast and reliable micrograph laboratory solution for quick analysis on wires ranging from 0.05 mm² to 80 mm², with customizable reporting options.

Quality Tools

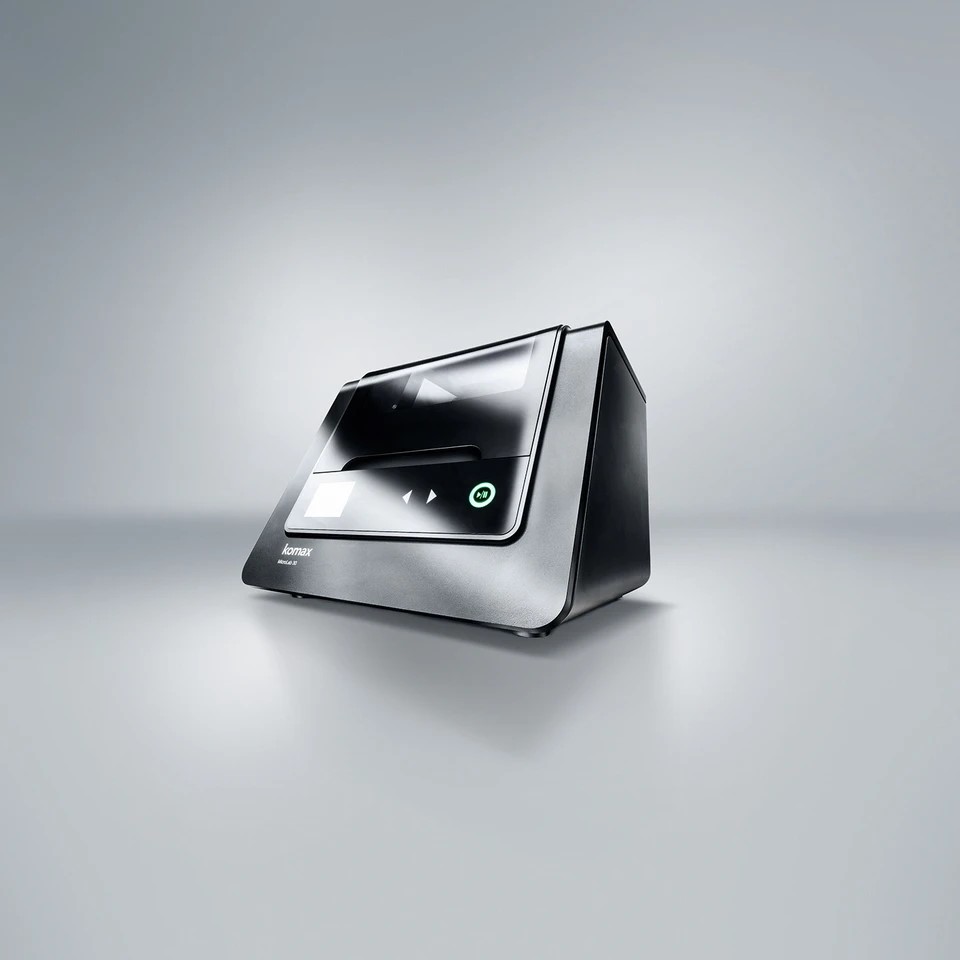

MicroLab 30

The MicroLab 30 mobile micrograph laboratory creates micrographs for medium to large quantities of B-crimps, MIL-crimps and hex-crimps with a diameter of 0.5 to 10.0 mm.

Quality Tools

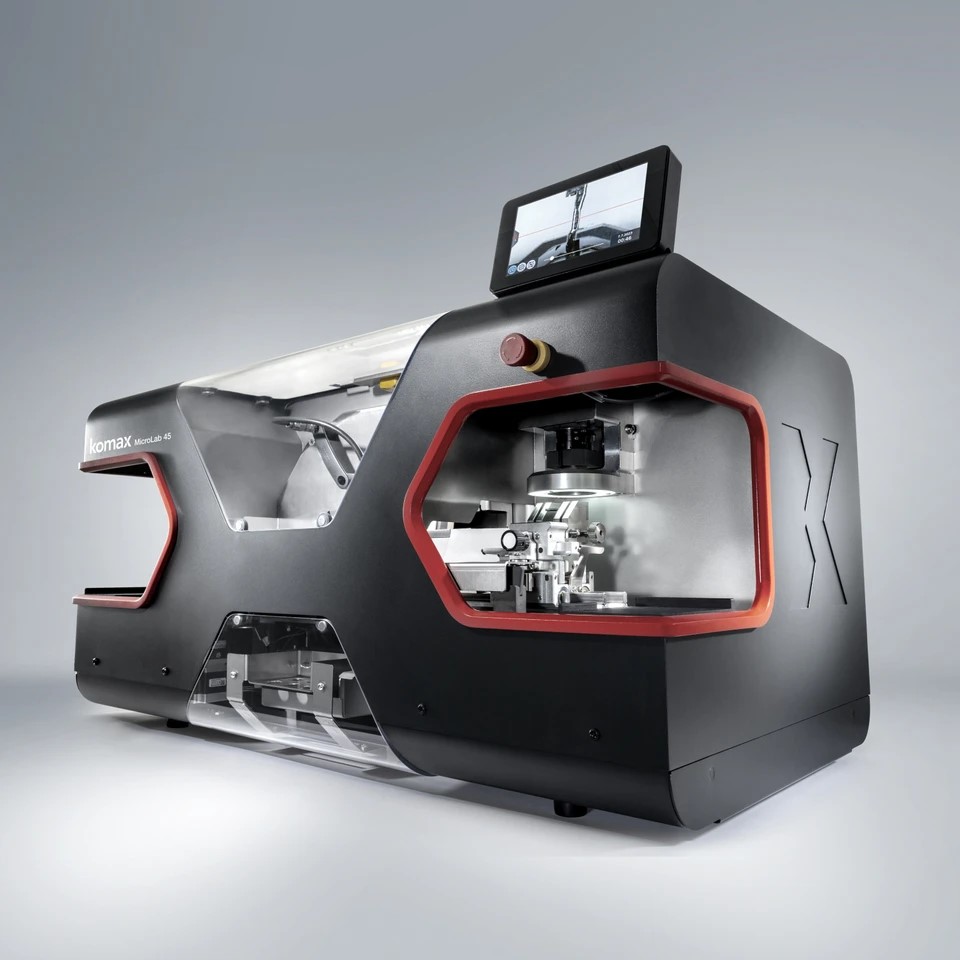

MicroLab 45

The MicroLab 45 is the best micrograph labratory for high level quality checks. With the fully automatic transport system, it quickly meassures and evaluates micrograph pictures.

Quality Tools

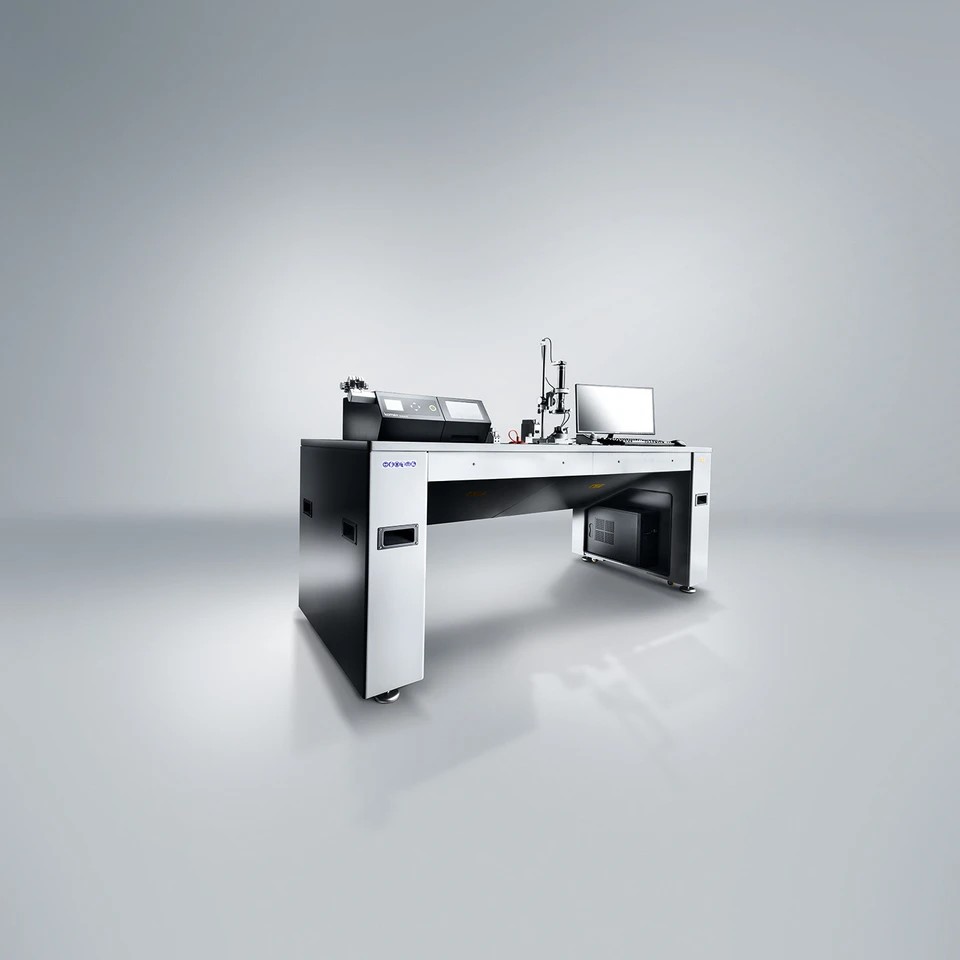

MicroLab 55

The MicroLab 55 is a stand-alone micrograph laboratory for all types of crimping available on the market for both cross sections and longitudinal sections with a width of 0.5 to 30.0 mm.

Quality Tools

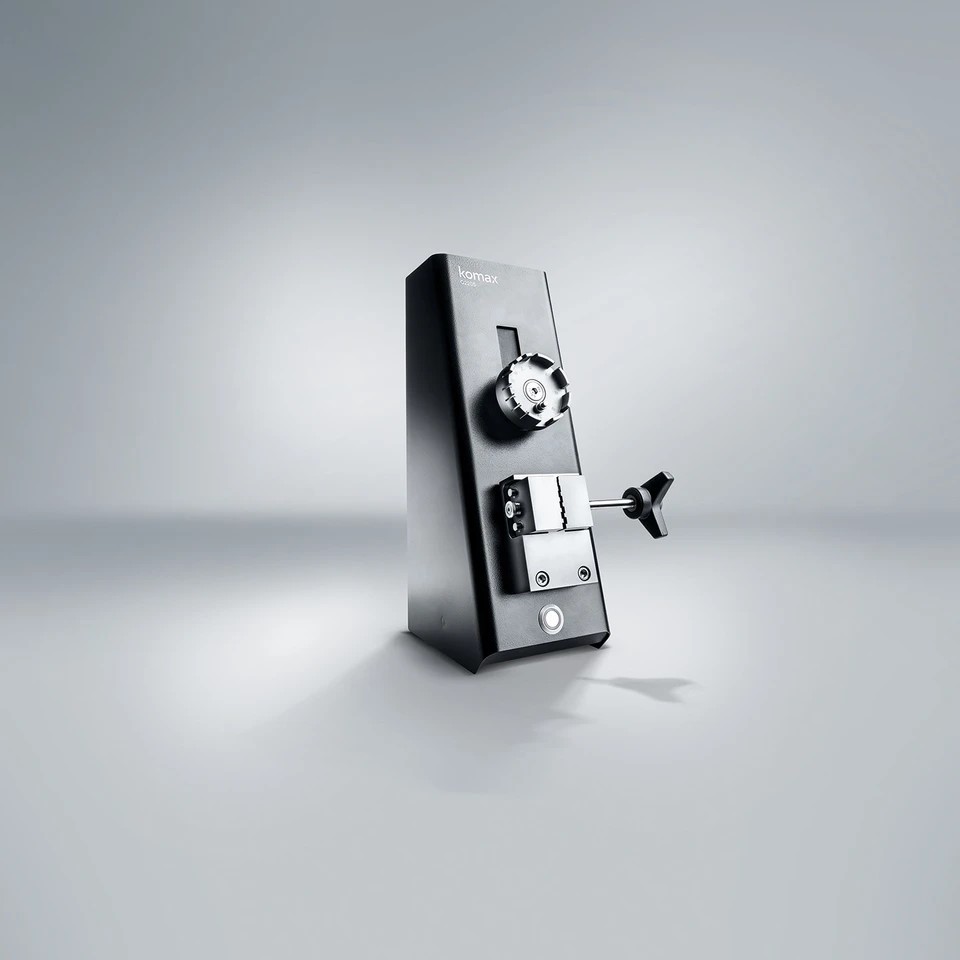

Q2205

As a module in a wire processing machine, the Q2205 measurement device measures with a defined pull-out speed of 25 or 50mm/min the pull-out forces of 20 to 500 N.

Quality Tools

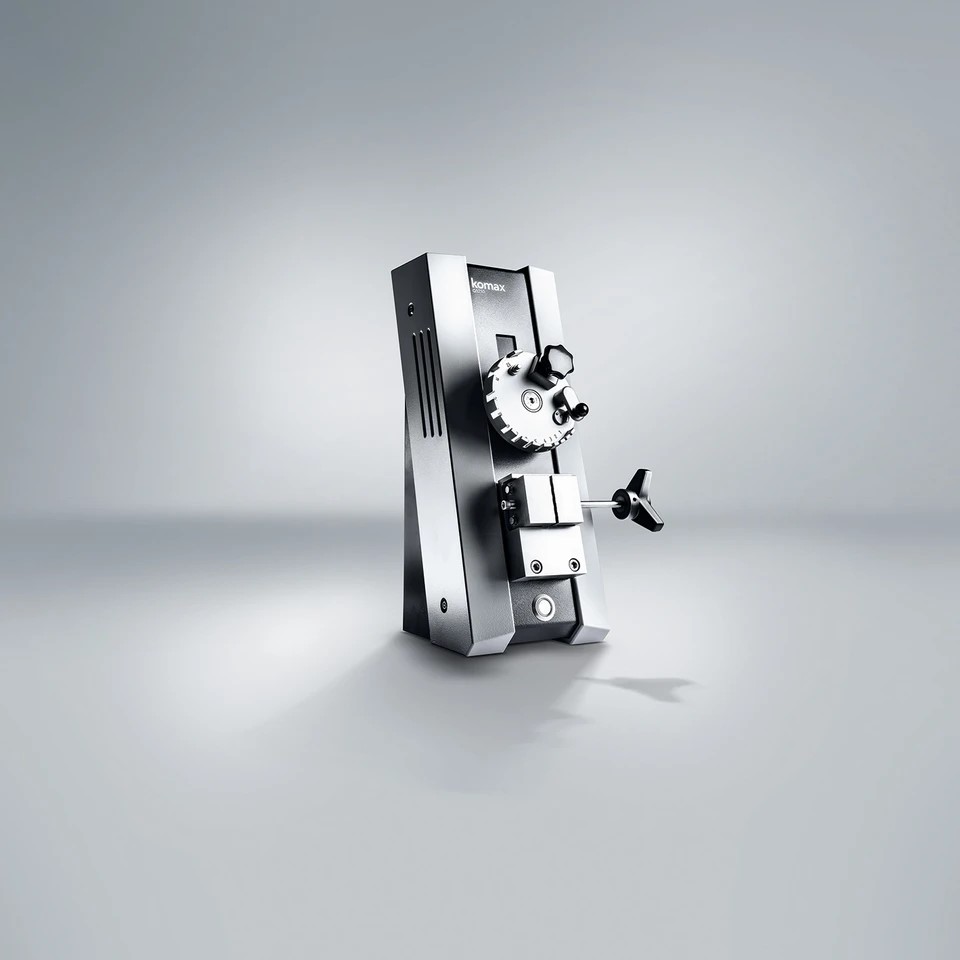

Q1210

The Q1210 precision measuring module for wire processing machines measures pull-out forces of 20 to 1000 N with a pull-out speed of up to 200mm / min.

Quality Tools

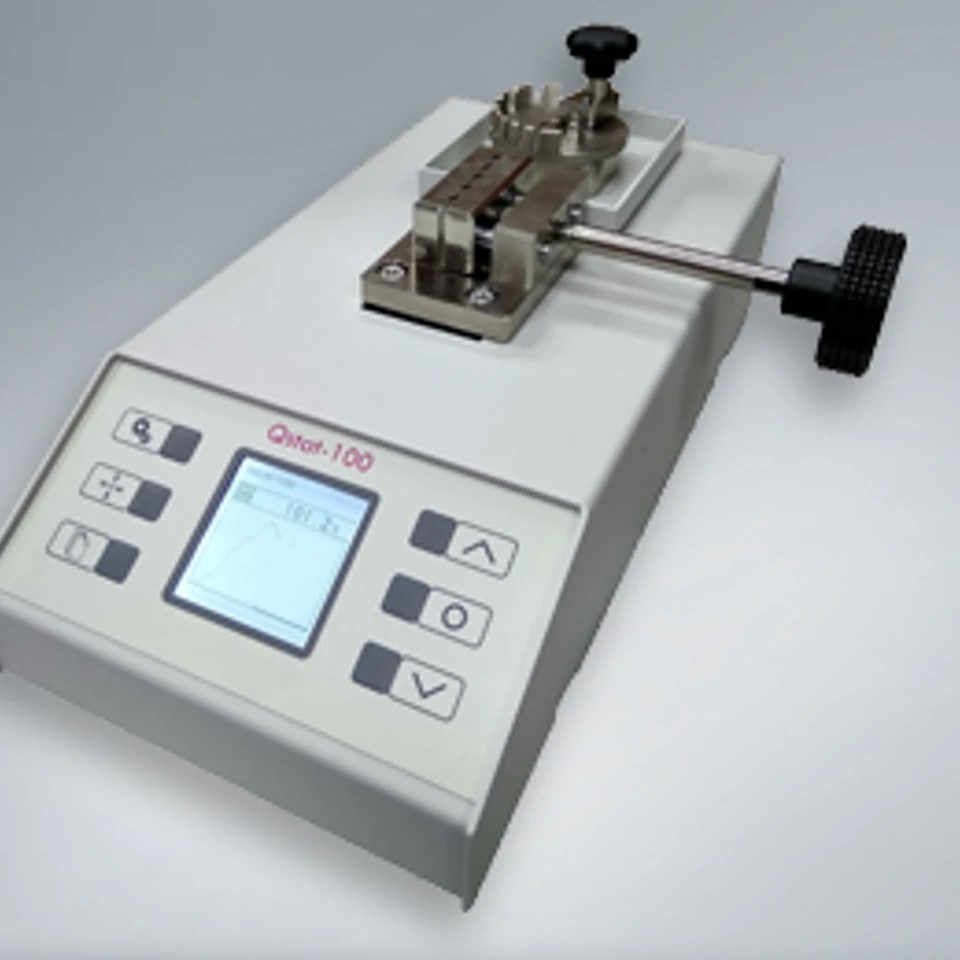

QStat-100

The Qstat-100 motorized pull-out force measurement device checks and visualizes the pull-out profile as a transportable table-top device to check the wire harness quality.

Quality Tools

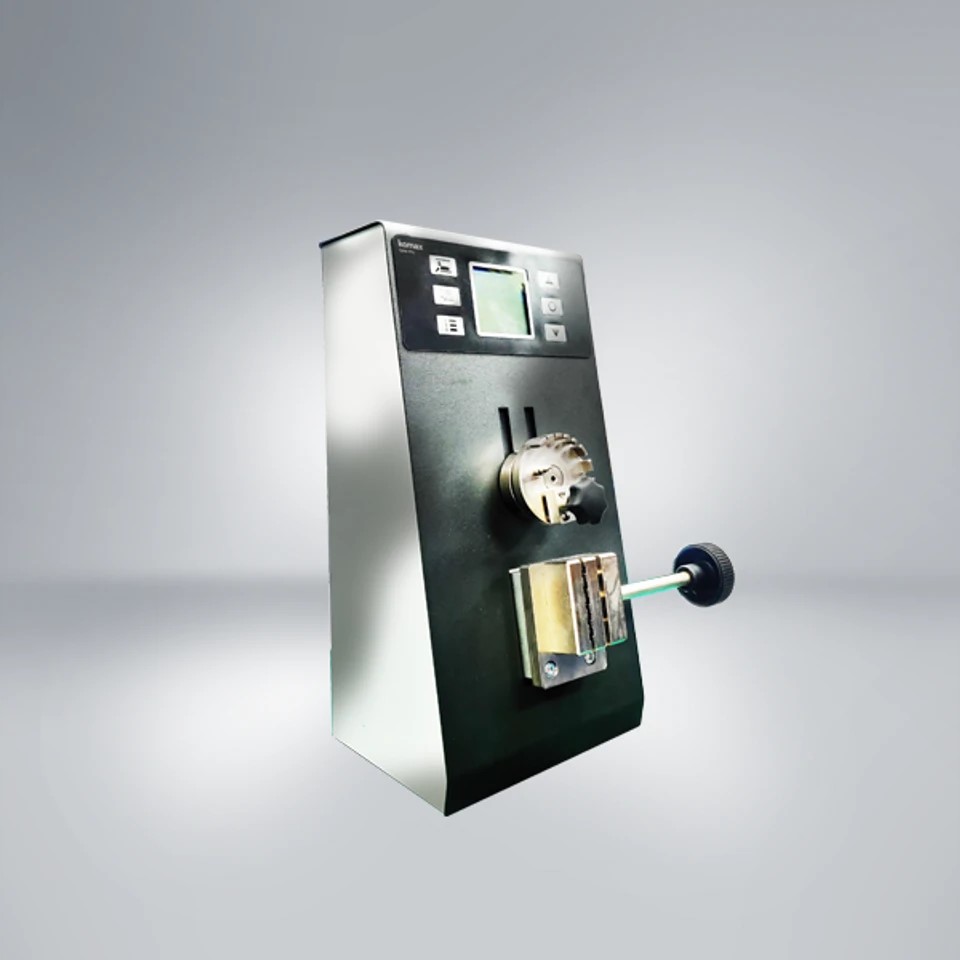

QStat Pro

The Qstat Pro is a motorized bench top Pull Tester. It also serves as a quality inspection station

Quality Tools

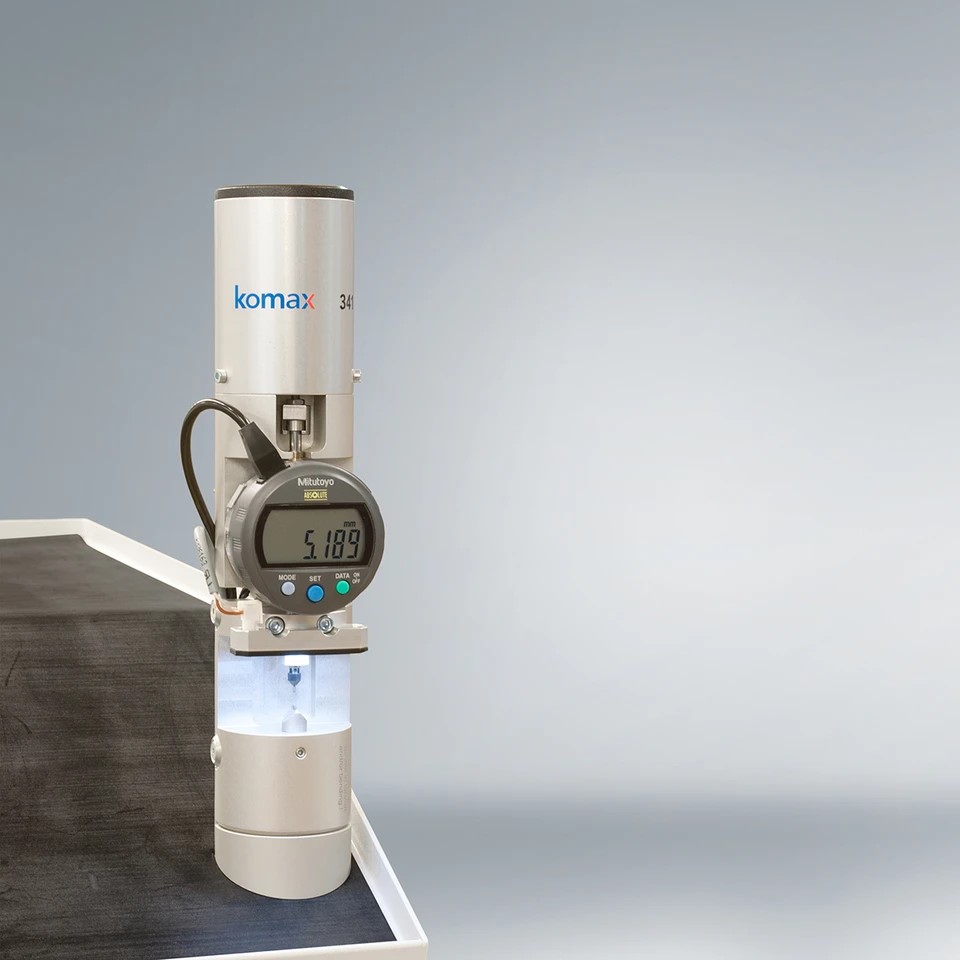

Komax 341

The Komax 341 crimp height measurement device measures terminals up to a height of 8 mm and compares them with the target crimp height. If there is no match, production will not start.

Quality Tools

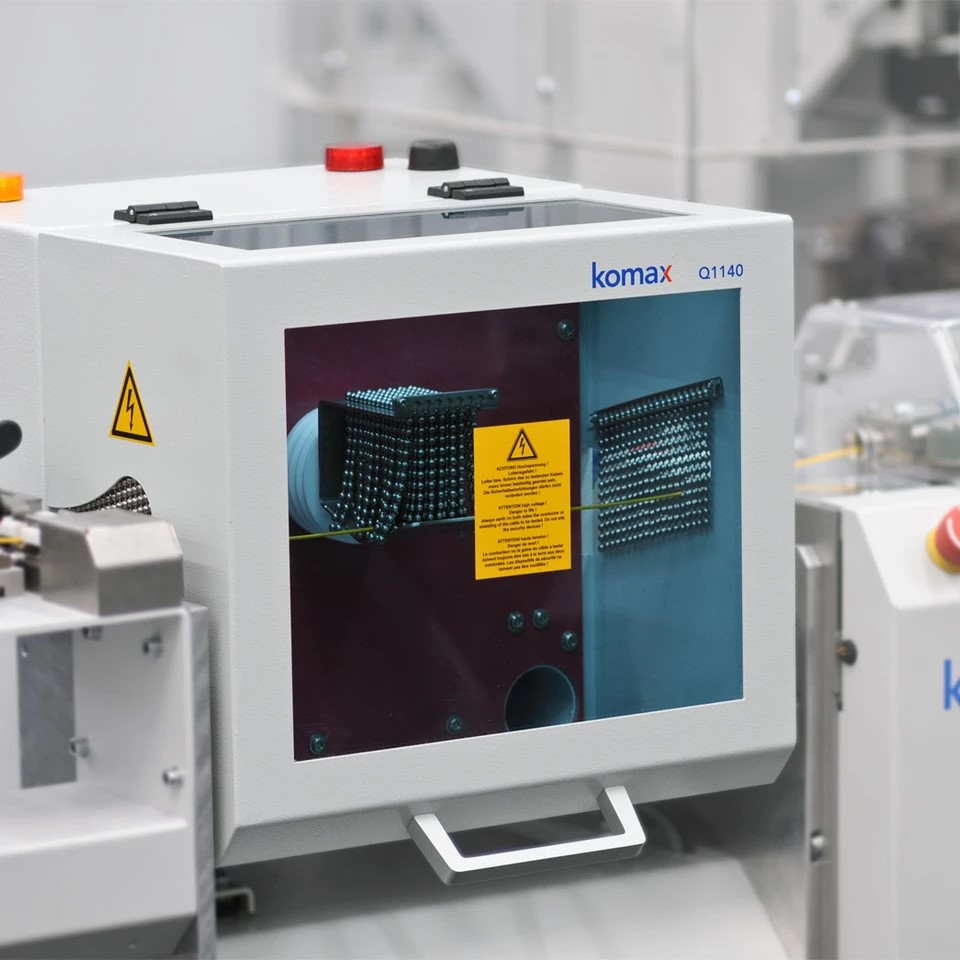

Q1140

The Q1140 high-voltage spark tester for fully automatic wire processing machines checks wire insulation for the smallest needle holes and microscopic cracks.

Quality Tools

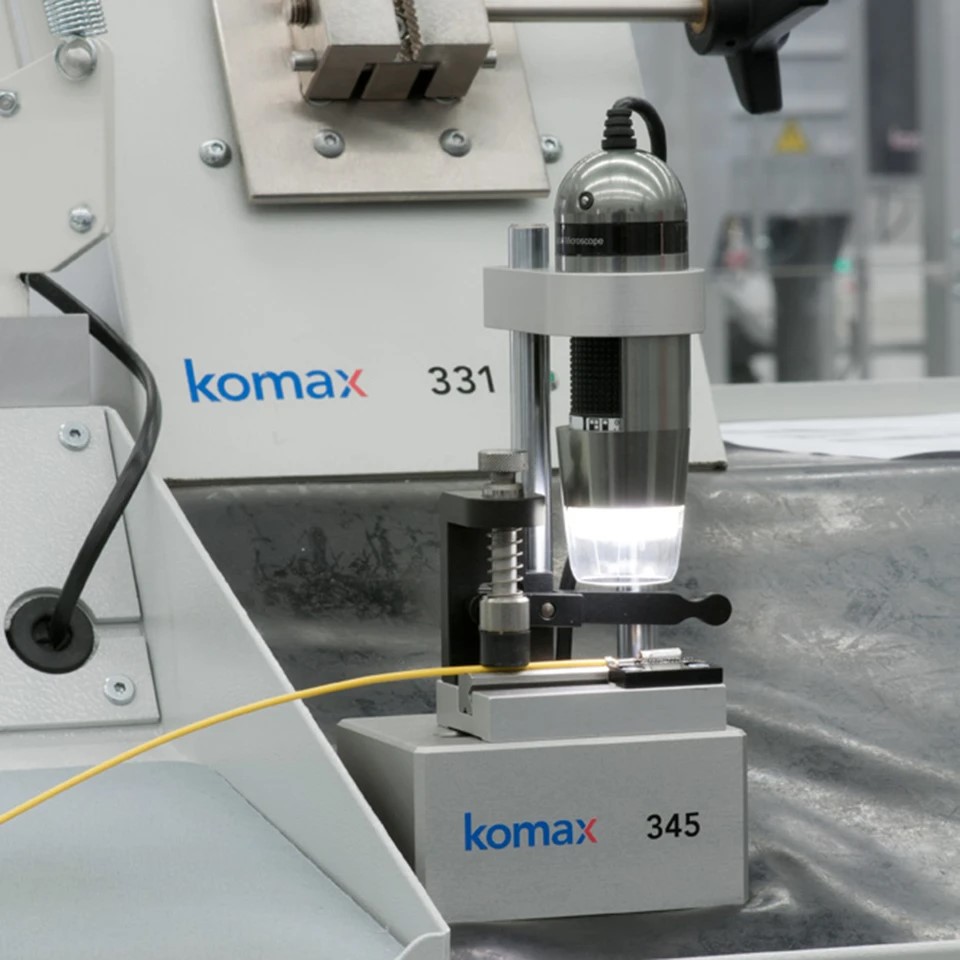

Komax 345

The high-quality, digital Komax 345 microscope enables the control of stripping and crimping quality, even with miniature terminals and the smallest wire cross sections.

Quality Tools

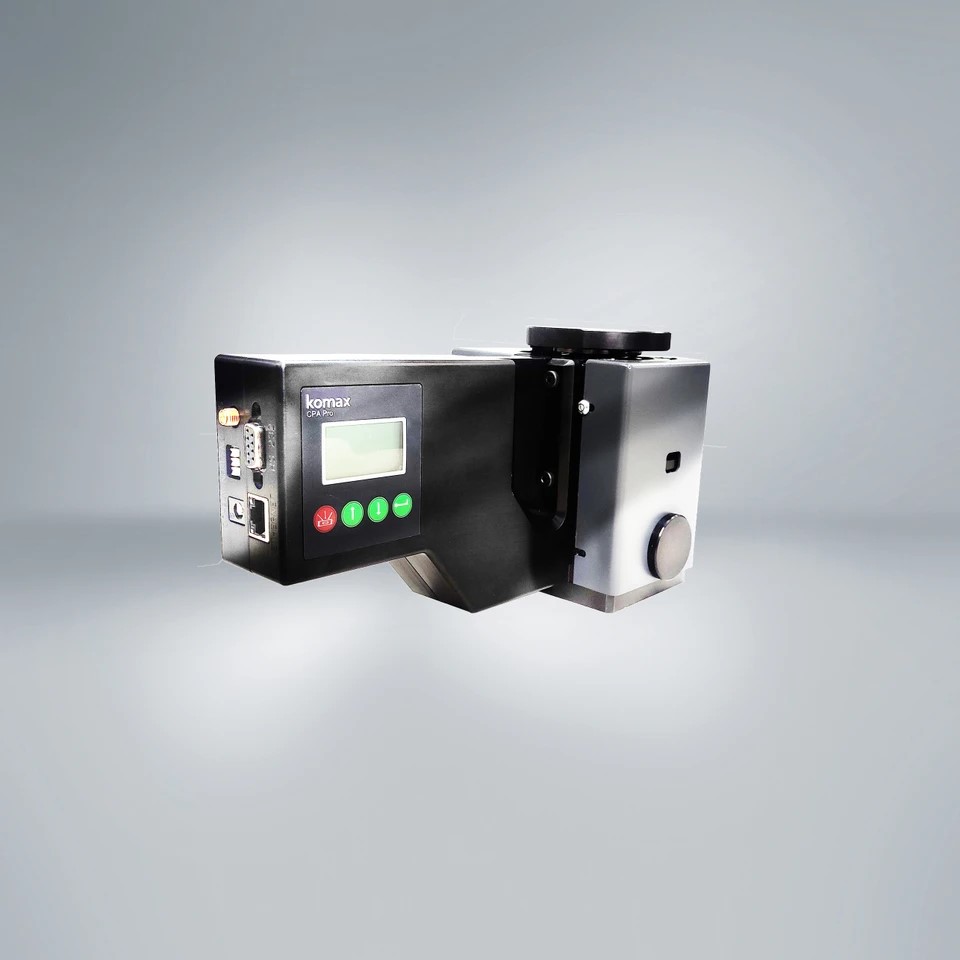

CPA Pro

With the CPA PRO crimp force monitoring, a quick and accurate check of the performance of fully automatic wire processing machines is carried out– without an additional PC.

Quality Tools

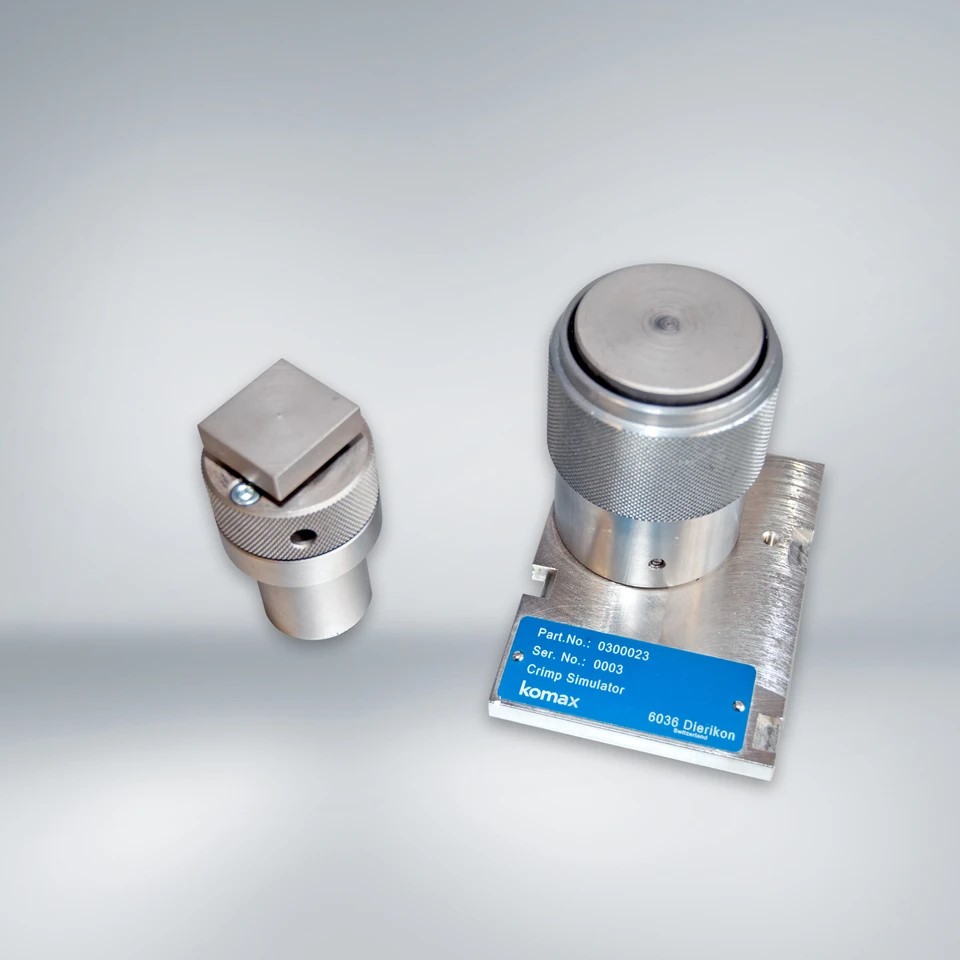

Crimp Module Analyzer

The Crimp Module Analyzer quality measuring device is used to measure and check the stability of the crimp module in μm using a two-stage force simulator.

Quality Tools

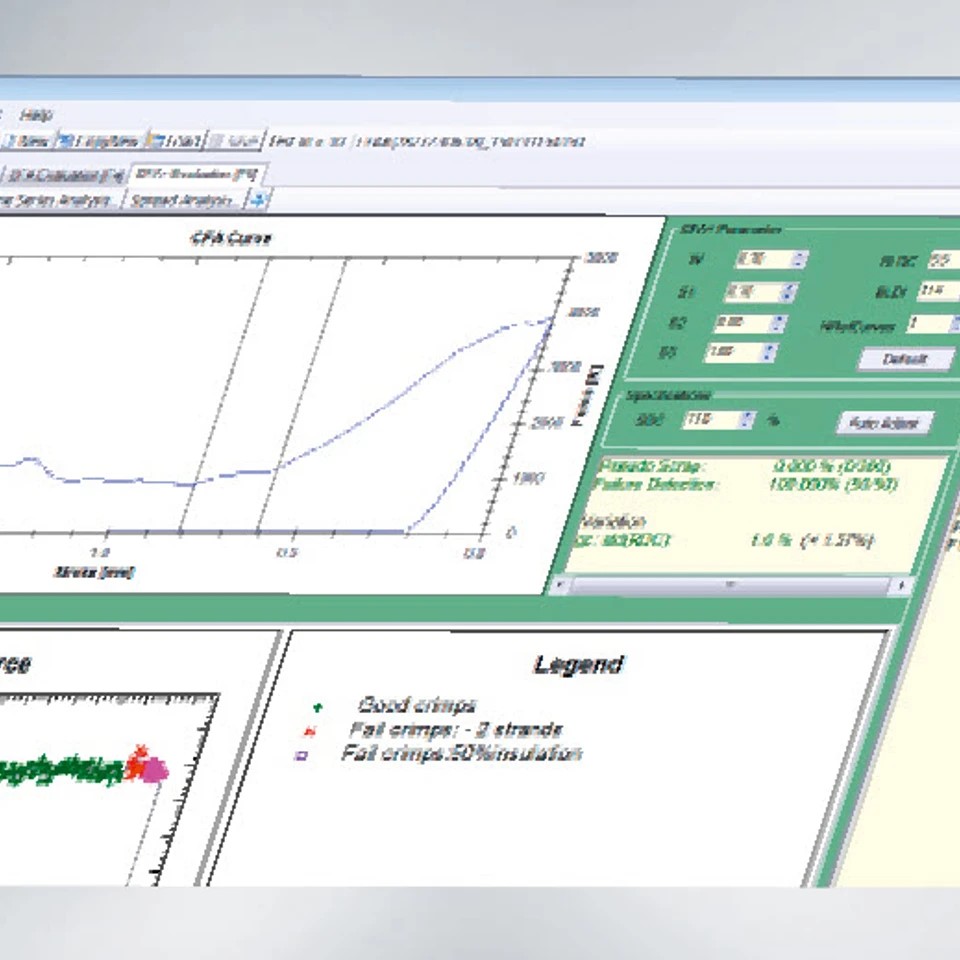

CFA Lab

The CFA-Lab PC software evaluates the CFA/CFA+ crimp force monitoring data from crimping machines and modules. Optimizing the settings minimizes rejects.

Quality Tools

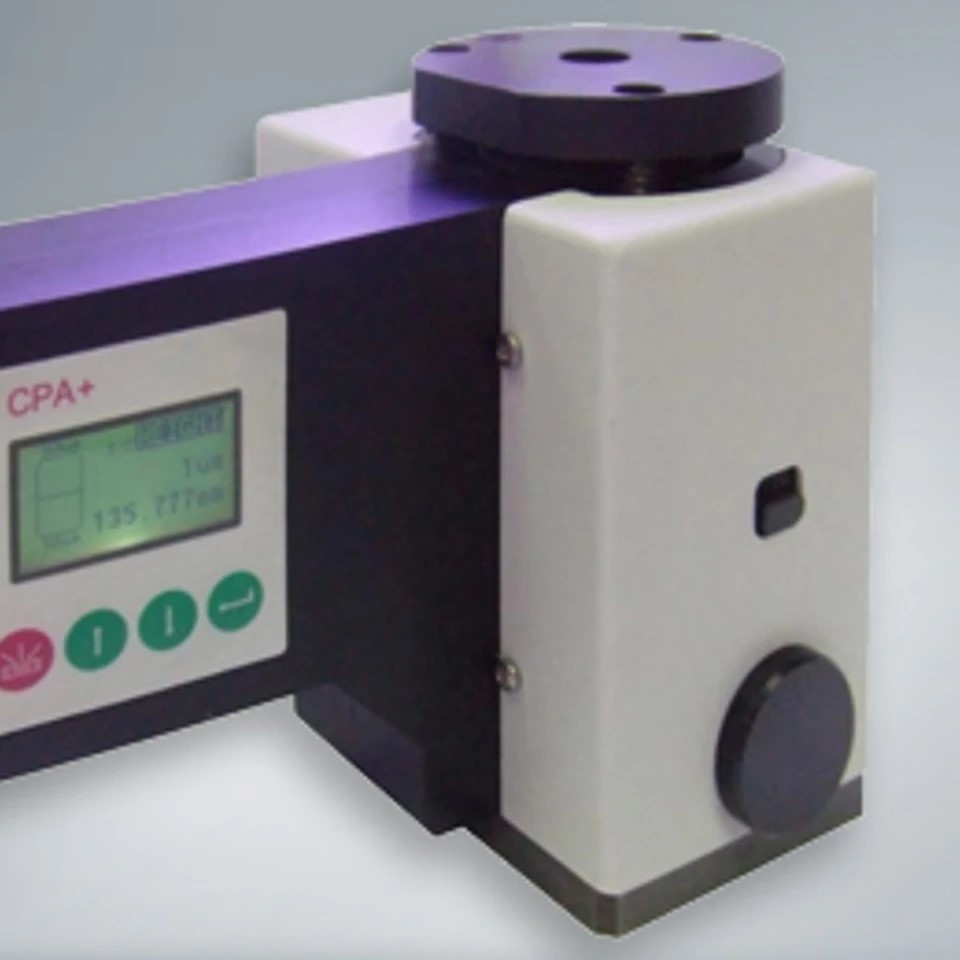

CPA+

The CPA+ crimp force monitoring is the compact quality control and maintenance device for crimp modules– with integrated graphic display for analysis in real time.

Quality Tools

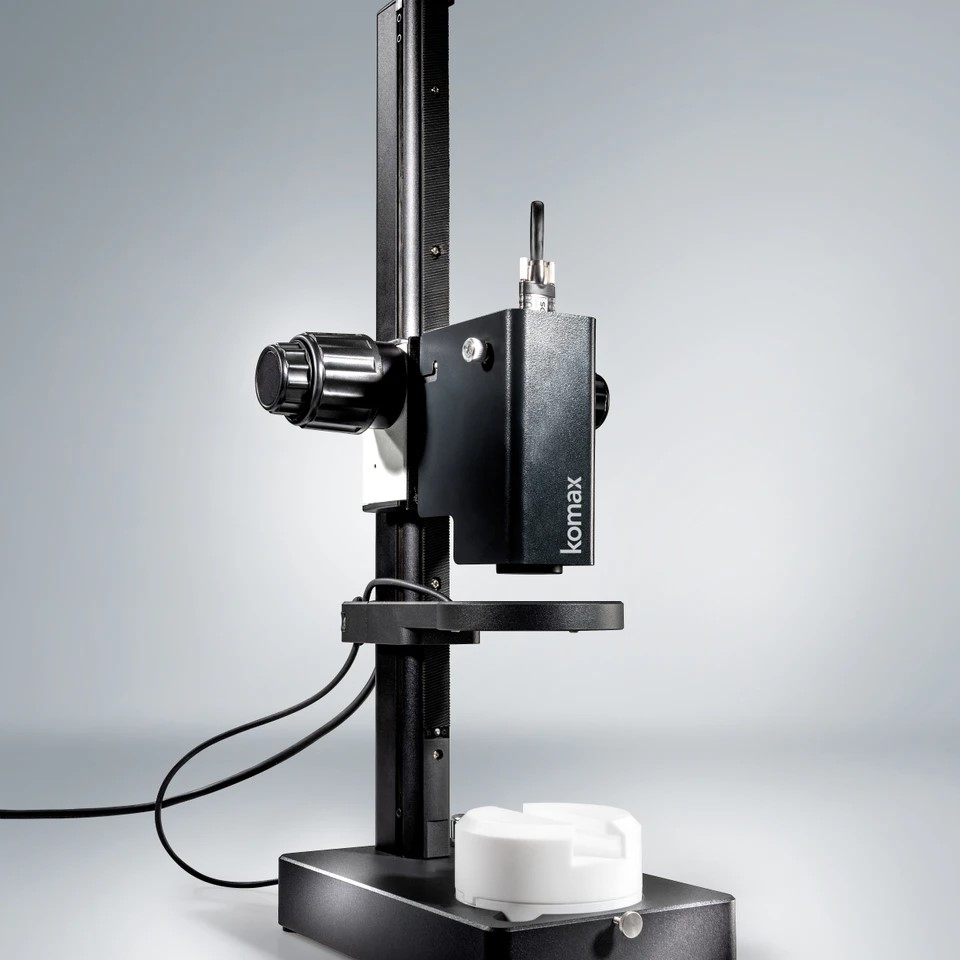

Smart Optic

The SmartOptic image acquisition module offers high-quality color images and can be operated independently of the micrograph laboratory in conjunction with SmartVision on a PC.
