Sirius Technologies | Snapon | Hand Tools | Torque Wrenches & Calibrators

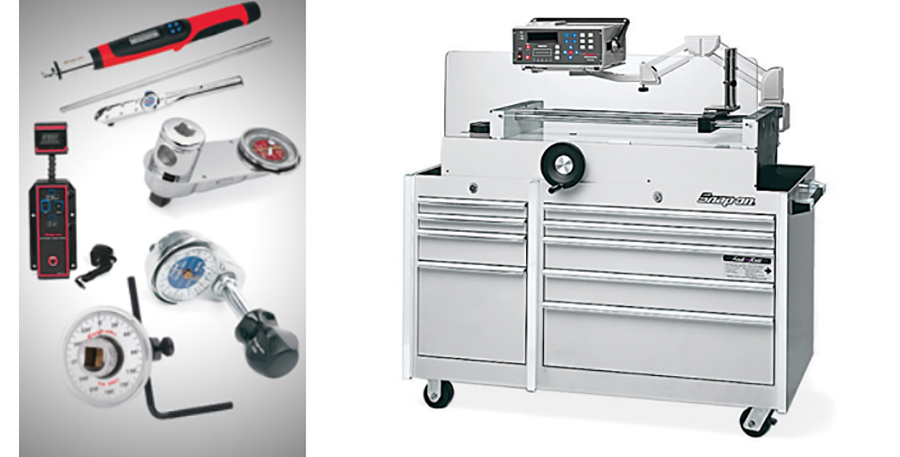

Torque Wrenches & Calibrators
Adjustable

#	Torque Wrenches and Calibrators Type	Available Range
1	Adjustable Click-Type	Metric Torque Instruments Newton Meter Torque Instruments Ratchet Repair Kits (QD Series) US Torque Instruments (ft. lb.) US Torque Instruments (in. lb.)
2	Adjustable Click-Type Torque Wrenches, Tq Series	Metric Torque Wrenches with Conversion Scale Newton Meter Torque Wrenches with Conversion Scale Ratchet Repair Kits (TQ Series) US Reading Torque Wrenches with Conversion Scale
3	Electronic Bench Top Torque Testers	Horizontal Torque Testers and Transducers Torque Comparator

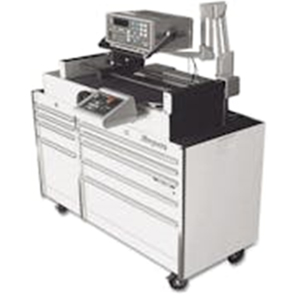

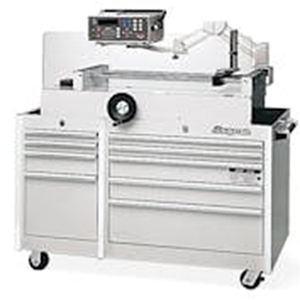

4	Electronic Torque Tester and Calibrator	Accessories Calibration Wheels / Arms Electronic Torque Tester and Calibrator Force Testing Equipment Joint Rate Simulator Adapters Transducers TTC2000 / TTC2800 System Components Weight Hangers / Trays Weight Sets
5	Electronic Torque Wrenches	Electronic Dial-Type Torque Wrenches ELECTROTORK® Torque Wrenches
6	Geared Head Multipliers	Geared Head Multipliers Geared Head Multipliers-X4 Models Reversible Air Motor

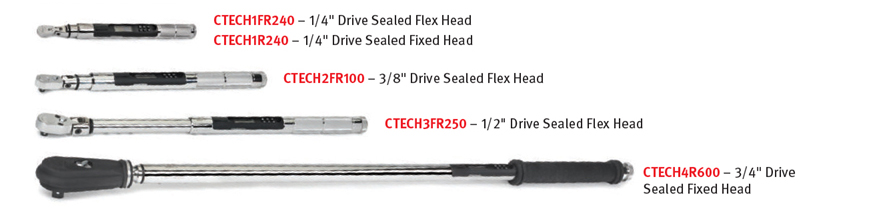

Control Torque Wrenches
Sealed Head

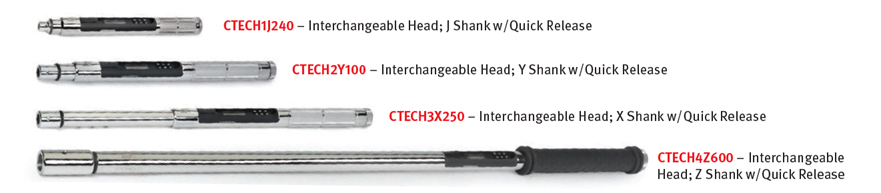

Control Torque Wrenches
Interchangeable Head

#	Torque Wrenches and Calibrators Type	Specification
1	Interchangeable Head	Box End Heads, 12-Point, inches Box End Heads, 12-Point, mm Flare Nut Heads, 12-Point, inches Flare Nut Heads, 6-Point, inches Flare Nut Heads, 6-Point, mm Open End Heads, inches Open End Heads, mm Ratcheting Box End Heads, 12-Point, inches Ratcheting Box End Heads, 12-Point, mm Square Drive Heads / Fixed Square Drive Heads / Ratcheting Torque Wrench Bodies / Adjustable Torque Wrench Bodies / Adjustable / Dual Range Torque Wrench Bodies / Pre-Set
2	T Handle Torqmeter® Torque Wrenches	Combination U.S./Metric Reading - Standard 2% Accuracy U.S. Reading - Standard 2% Accuracy
3	Techwrench® Torque Wrenches	Memory Models / 1% Accuracy / Ratcheting / Flex Head Memory Models / 4% Accuracy / Interchangeable Head and "D" Models Standard Models / 2% Accuracy / Fixed Head Standard Models / 2% Accuracy / Flex Head Standard Models / 4% Accuracy / Interchangeable Head and "D" Models TECHANGLE Models / 2% Accuracy / Ratcheting / Fixed Head TECHANGLE Models / 2% Accuracy / Ratcheting / Flex Head Adjustable Click Type Torque Wrench

Control Torque Wrenches

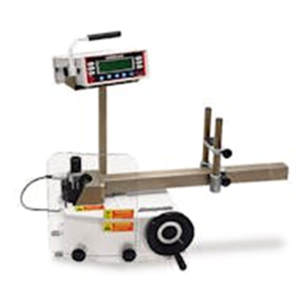

Torque Calibator

Automatic Sensor Recognition with TTC Series "Smart" Transducers
Alpha-numeric 8 digit display
Memory to 3,000 values
Includes low-profile serial printer
Date and time stamp for stored values
Statistical analysis performed on stored data
Programmable manual or automatic options for clear, store and print functions
Recall and review of stored torque values.
Modes: Track, Peak, First Peak and Power Tool.
Optional angle encoder.
Full digital circuitry
Eight torque measurement units: in-oz, in-lb, ft-lb, cN?·m, dN?·m, N?·m, kg-cm and kg-m
Automatic lock-up for transducer protection

Control Torque

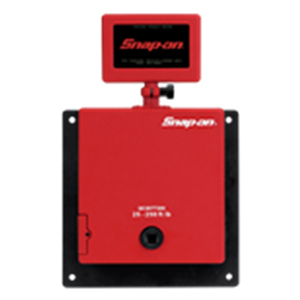

Torque Tester

Multifunctional tester for torque wrenches
Ideal tool for checking torque wrenches in workshops, garajes and production lines
Units of measure: Up to 12 selectable units like Nm, lbf.ft, lbf.in
Torque range: 3 N.m - 2100 N.m over 4 models
Easy to use (4 button interface).
It can be used CW at temperature range -10°C / +50°C
Allows up to 10 target torque settings and respective tolerances
Micro-USB socket allows communication to PC or tablet.
No internal memory but can be connected to an external PC or tablet for data storage

Operational modes: Peak (Dial), 1st peak (click) and track
Accuracy ±1% CW
Visual (backlit LCD display) signal
IP40
Horizontal & vertical mounting options
Powered via Micro-USB socket Can also be powered from: USB power packs, PC USB output & vehicles via USB. Includes 110/220V universal charger
Supplied in sturdy plastic case with foam
Supplied with a factory declaration of conformity traceable to International Standards and CE marking
Made in UK

Snapon

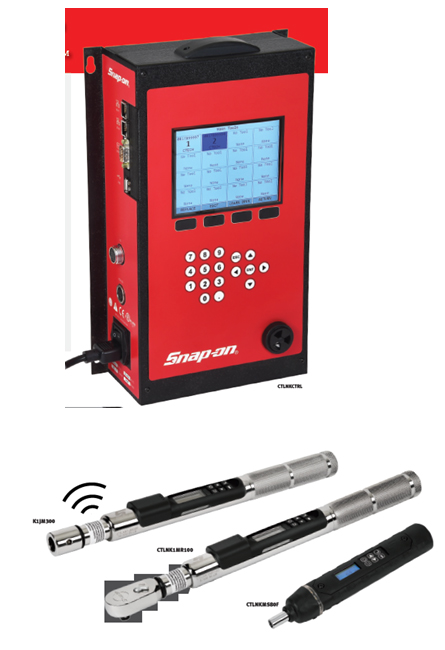

Control Tech Link System

ControlTech™ Link System Wireless Connectivity For Real Time Process Controls

Wirelessly link to plant level manufacturing execution systems (MES) through Snap-on’s new, cutting-edge controller

Provides real time process controls for multiple operators and documents every torque event; eliminating redundant operations, mistakes, rework and reducing warranty costs
Can also be configured as a standalone data collection system, or control system
MES Integration
Two Modes Of Operation

Report Mode

The technician uses the wrench as they normally would, but data that is typically stored on the wrench’s internal memory is transmitted to the controller, and then relayed to a database, if desired. This function provides automatic electronic signature and documentation for QA purposes.

When in “Report” mode, the controller allows up to eight tools to report operator activity simultaneously.

Control Mode

The controller sends preset torque, angle and batch instructions to the wrench. The wrench becomes a “slave” to the controller and only allows the technician to carry out predetermined presets and jobs. When in “Control” mode, controller can be linked to as many as 16 torque wrenches, and control as many as 4 wrenches simultaneously.

Robust And Reliable Data Transfer
Durability
Multi-sensory Indicators
Networking Capabilities
Connectivity
Programmable

Torqmeter® Torque Drivers - 1/4" Drive

Torque Wrenches & Calibrators
Torqmeter® Torque Drivers - 1/4" Drive

#	STorqmeter® Type	Specification
1	Torqmeter® Torque Drivers - 1/4" Drive	Combination U.S./Metric Reading - Standard 2% Accuracy - 1/4" Combination U.S./Newton Meter Reading - Standard 2% Accuracy - 1/4" U.S. Reading - Standard 2% Accuracy - 1/4"
2	Torqmeter® Torque Wrenches	Combination US/Metric Reading-Standard 2% Accuracy Combination US/Newton Meter Reading-Precise 1% Accuracy Newton Meter Reading/Standard 2% Accuracy Tubular Extension Handles (TE/TESI/TER/TEC Series) US Reading- Standard 2% Accuracy-Industrial Finish US Reading-Standard 2% Accuracy
3	Techangle® Torque Wrenches	TechAngle® Models (2% Accuracy) Torque Accuracy: ±2% CW and ±3% CCW, 20–100% of full scale Angle Accuracy: ±1% of Reading, ±1° @ Angular Velocity >10°Sec <180°/Sec Angle range: 0–360° Six measurement modes (ft-lb, in-lb, Nm, Kgcm, dNm, angle)
4	Controltech® Industrial Torque Wrenches	Standard Models/2% Accuracy/Ratcheting Head Standard Models/2% Accuracy/Interchangeable Head
5	Torque Screwdrivers	Adjustable Torque Screwdrivers Adjustable Torque Screwdrivers (1/4" drive) Preset Torque Screwdrivers Torque Limiting Drivers TechAngle® Electronic Torque Screwdriver ControlTech® Micro Screwdrivers
6	Torque Testers	Digital Torque Testers (DTT Series) Electronic Torque Testers
7	Versa test™ Electronic Torque Tester	Accessories VERSATEST
8	Versatorq™ Electronic Metering/Data Acquisition System	Torque Acquisition Meters VERSATORQ1® Sensors FLANK DRIVE® Pentagon Socket Pipe Plug, inches, chrome Shallow Universal, inches, Chrome WEATHERHEAD® Fittings, chrome
