ProductMahr
Vernier Calipers

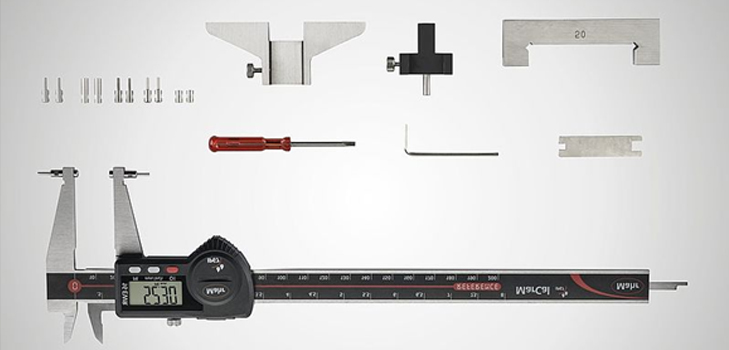

Digital universal caliperMarCal 16 EWR-V Measuring range mm: 0 - 200 mm Resolution mm/inch: 0.01 mm / 0.0005 inch

Depth Rod: rectangular Data interface: USB, Opto RS-232C, Digimatic, wireless IP protection category: IP 67 Package contains: battery, instruction manual, case, setting gauge for inside measurement 16 Eel, measuring force device 16 Ec, depth measuring bridge 16 Em, anvils for outside measurement 16 Eea 1-3, anvils for inside measurement 16Eei 1-3, 4118808 without measuring anvils, adjustment bridge and measuring force equipment

• High contrast analog display
• Locking screw above
• Lapped guide-way
• Measuring blade for inside measurements
• Slide and beam made of hardened stainless steel
• Step measuring function
• Immediate measurements due to the Reference System
• Raised guide-way for the protection of the scale
• Dirt wipers are integrated in the slide
• Calipers range from 0-150,0-200,0-300

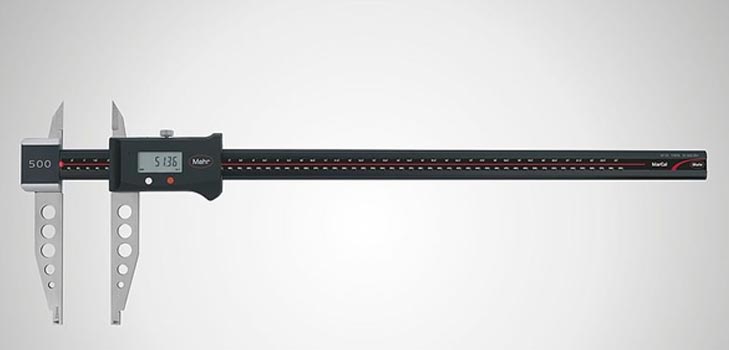

Digital workshop caliperMarCal 18 ESA Measuring range mm: 0 - 1000 mm Resolution mm/inch: 0.01 mm / 0.0005 inch

Data interface: Opto RS-232C (only 300 mm version) IP protection category: None Package contains: battery, instruction manual, case

• To reduce the overall weight the slide and beam are made from aluminum and are coated with a hard anodized surface coating (1100 HV)
• High contrast analog display
• Locking screw above
• Rounded measuring blades for inside measurements
• Prisma guide-way for a more smooth and even movement
• Measuring surfaces made of steel
• Measuring blades for outside measurements
• Dirt wipers are integrated in the slide

Digital depth gauge MarCal 30 EWR-U Measuring range mm: 0 - 300 mm Resolution mm/inch: 0.01 mm / 0.0005 inch

Data interface: USB, RS-232C, Digimatic IP protection category: IP 67 Package contains: Measuring anvil 30 Ud (twin hook for widths and distances), battery, instruction manual, case

• High contrast analog display
• Locking screw above
• Lapped guide-way
• Measuring surfaces made of steel
• Slide and beam made of hardened stainless steel
• Immediate measurements due to the Reference System
• Raised guide-way for the protection of the scale
• Excellent resistance against dust, coolants and lubricants
• Dirt wipers are integrated in the slide

Caliper with analog display MarCal 16 GN Locking screw above With fine adjustment Measuring range mm: 0 - 180 mm Readings mm: 0.02 mm Package contains: thread table, case.

• Vernier and scale have a satin chrome finish for glare free reading
• Locking screw above
• Measuring surfaces made of steel
• Measuring blade for inside measurements
• Slide and beam made of hardened stainless steel
• Step measuring function
• Raised guide-way for the protection of the scale

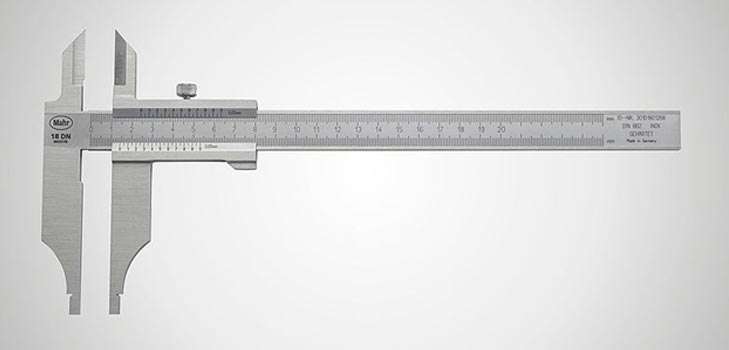

Workshop calipersMarCal 18 DN Locking screw above Measuring range mm: 0 - 2000 mm Readings mm: 0.05 mm

Package contains: up to 1000 mm delivered with a case, over 1000 mm individually packed. Small, compact design

• Vernier and scale have a satin chrome finish for glare free reading
• Locking screw above
• Rounded measuring blades for inside measurements
• Measuring surfaces made of steel
• Slide and beam made of hardened stainless steel
• Raised guide-way for the protection of the scale

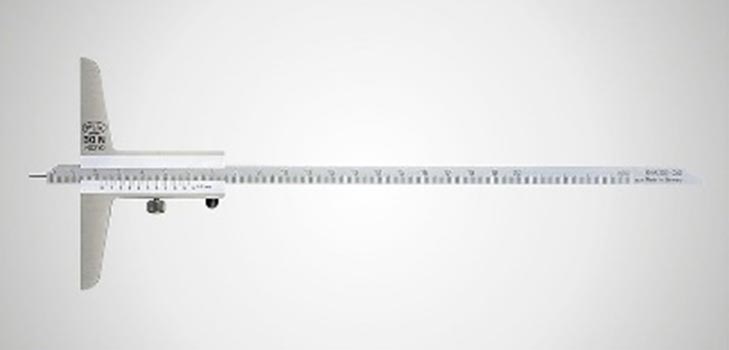

Depth Gage MarCal 30 N Measuring range mm: 0 - 80 mm Readings mm: 0.05 mm Package contains: case.

• Vernier and scale have a satin chrome finish for glare free reading
• Locking screw below
• Hardened measuring pin
• Measuring surfaces made of steel
• Interchangeable beams

Dial CaliperMarCal 16 U Locking screw above Measuring range mm: 0 - 150 mm Graduation value mm: 0.01 mm Package contains: case.

• Large, high contrast dial face
• Shockproof movement
• Zero setting through rotating the dial face and locking screw
• Satin chrome finished line scale
• Locking screw above
• Measuring surfaces made of steel
• Measuring blade for inside measurements
• Slide and beam made of hardened stainless steel
• Step measuring function
• Raised guide-way for the protection of the scale
