Battery Powered Hydraulic Crimp Tool HC 20

Battery Operated Hydraulic Crimping Tools

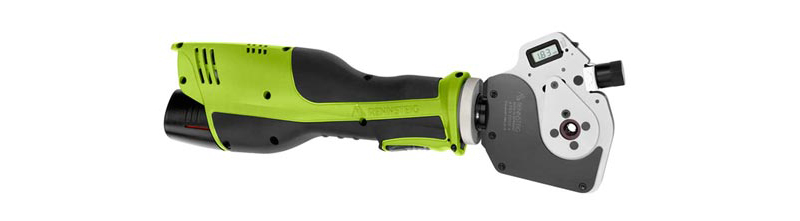

Battery Powered Hydraulic Crimp Tool HC 20

Products

Electro-hydraulic Li-Ion battery-powered tool for crimping turned male and female contacts
20 kN pressure
2.8 second crimp cycle
One battery charge lasts for about 300 crimps with average load Recharge in under 30 minutes

Battery Powered Hydraulic Crimp Tool APZ 50

Battery Operated Hydraulic Crimping Tools

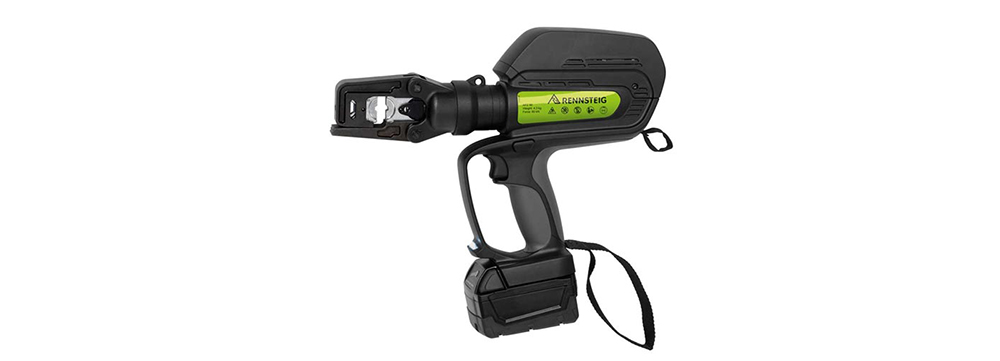

Battery Powered Hydraulic Crimp Tool APZ 50

Products

Battery-powered hydraulic crimp tool for crimping copper and aluminum conductors with cross-sections 10-185 mm²
360° rotating crimping head
Li-Ion Battery 18V / 3Ah
Charger 18V-230V, also as 18V-120V US version available
All available crimping dies of the hand hydraulic crimping tool HPZ 50.1 are usable
3 years or 20000 work cycles warranty
Manual return in every position possible
LED battery status display
Carrying strap
Without die sets
In plastic case

Art. No.	Capacity mm² Cu	Capacity mm² Al	Crimp force kN	Dimensions mm	Weight of case g
6300 500 1	10 - 185	10 - 150	50	329 x 331 x 75	4300
